Product Details:
|
| Product Name: | 17'' Fanless Embedded Industrial PC | CPU: | Intel® Elkhart Lake Atom X6425E Quad-Core 2.0GHz |
|---|---|---|---|
| RAM: | DDR4L 3200MHz 4GB, MAX 32GB | SSD: | 1 X M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 X 2.5" SATA |
| TPM2.0: | Yes | Resolution: | 1280 X 1024 |
| Brightness (cd/m²): | 400 | OS System: | Support Windows 10 / 11， Linux, Ubuntu |
| High Light: | Fanless Industrial All In One Touchscreen PC,Embedded Industrial All In One Touchscreen PC,J6412 Fanless Panel PC |
||

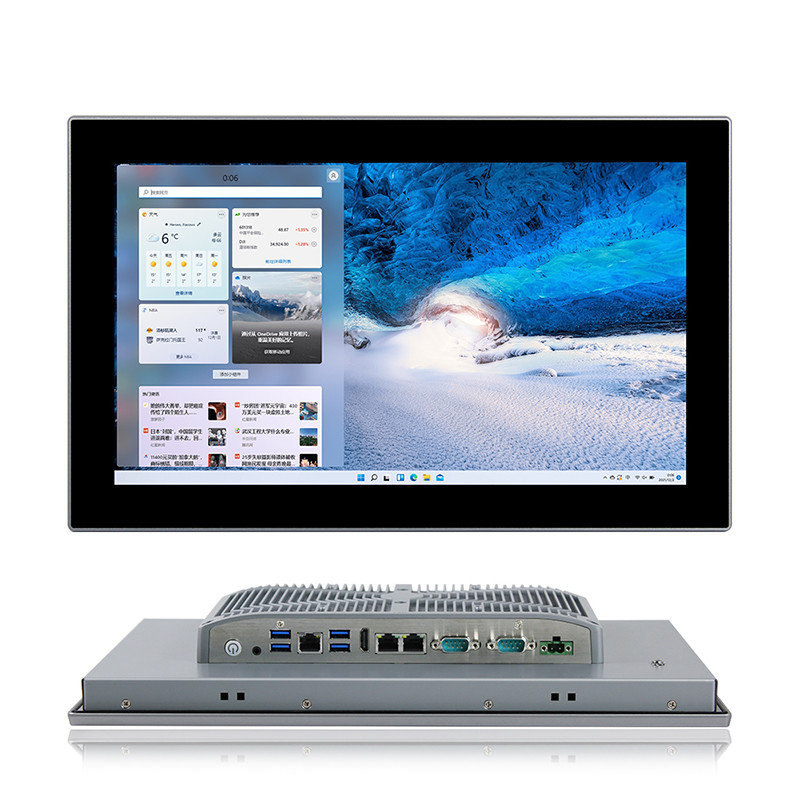

Fanless Embedded Industrial All In One Touchscreen PC J1900 J6412
J1900/J6412/I3 I5 I7 Fanless Embedded Industrial All in one Panel PC
Feature of 17'' Fanless Embedded Industrial PC.
1. Long-lasting product cycles, maintaining continuity through all phases of project launch and service
2. Superior quality and highly engineered industrial tablet
3. Support capacitive and resistive touch
4. Aluminum alloy structure designed for harsh and industrial environments
5. Rugged design with IP65 front panel or full aluminum enclosed chassis
6. Multiple mounting methods (100*100mm VESA mounting)
8. Accuracy for High Usage Applications
9. Support Windows, Linux operating system, Ubuntu
10. Compliant with CE, FCC, RoHS, standards.
11. VGA, DVI, support HDMI, LAN, USB, COM multiple input/output optional
12. Wide working temperature -30 to 80 degrees optional, support 7/24 operation
| PPC-C185WAC | |
| System | |
| CPU | Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
| L2 Cache | 1.5MB |
| System Chipset | Integrated with Intel® SoC |
| Memory | DDR4L 3200MHz 4GB, MAX 32GB |
| Harddisk | 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Network | Intel® 225-V GbE LAN |
| Audio | Realtek ACL897 Audio controller |
| TPM | TPM 2.0 |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
| Operation System | Windows 10 / 11, Linux, Ubuntu |

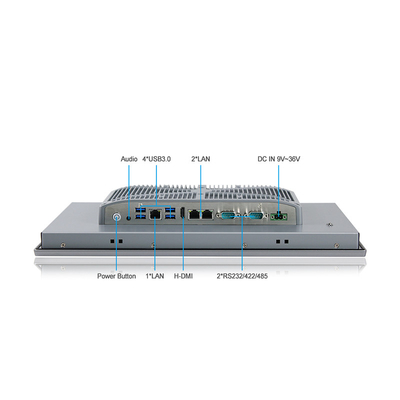

| I / O | |
| VIDEO | 1 x H-DMI |
| LAN | 3 x LAN (10/100/1000/2500 Mbps) |
| USB | 4 x USB 3.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | Optional (WiFi / Bluetooth / 4G / 5G ) |
| Display | |
| LCD Size | 18.5" ( 16:9 ) |
| Resolution | 1920 x 1080 ( FHD ) |
| Brightness (cd/m²) | 350 cd/m2 |
| Contrast Ratio | 1200:1 |
| Backlight MTBF | 50000 Hr (min.) |
| Viewing Angle | 85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Type | 10 point PCAP |
| Surface Hardness | ≥7H |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
| Power Mode | Support AT, ATX Mode |
| Power Input | 2-pin Terminal Block Connector with Power Input 9~36VDC |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity Protection) |
| Power Consumption | ≦30W |
| Physical | |
| Material | Aluminum alloy panel, anodized treatment |
| Mounting | Stand / Wall / VESA / Panel |
| Dimension (W x H x D) | 466 x 287 x 60 mm |
| Cut-out Size | 452 x 273 mm |
| Packing Size | 500 x 180 x 450 mm |
| Weight (Net) | 4.9 KG |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| IP Level | Front Panel IP66 |
| EMC | CE, FCC,ROHS |
Applications of 17'' Fanless Embedded Industrial PC
17'' Fanless Embedded Industrial PC, focusing on smart retail (smart freshly squeezed orange juice machine), energy management, Internet of Vehicles, smart manufacturing, smart medical care, driverless driving test driving training, industrial information security and other fields, as well as smart cabinet series ( Including smart express cabinets, smart fresh cabinets, etc.
