Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 17.3" LED |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Core I5-8265U Quad Core 1.6GHz |
| Memory: | 4GB, Up To 32GB | HDD: | 1 X M.2 120G SSD / (250G / 500G / 1TB SSD) Optional |
| I/O Interface: | 1xHDMI, 4xUSB, 2xLAN, 2xCOM | Touchscreen: | Capacitive Touch / Resistive Touch |
| TPM 2.0: | Yes | Working Voltage: | DC IN 9V~36V |
| High Light: | I5 8265U Projected Capacitive Touchscreen,Desktop Projected Capacitive Touchscreen,DC36V Industrial All In One PC |
||
Construction and features
The Industrial PC provides a controlled environment for the installed electronics to survive the rigors of the plant floor.
1. The electronic components can withstand higher and lower operating temperatures than typical commercial components.
2. Heavier metal construction as compared to the typical office non-rugged computer
3. Wider operating temperature range than normal PCs, with the widest temperature ranges being -20 to 70°C
4. Enhanced environmental protection such as dust proof, water spray or immersion proof, etc.
5. Higher grade power supply

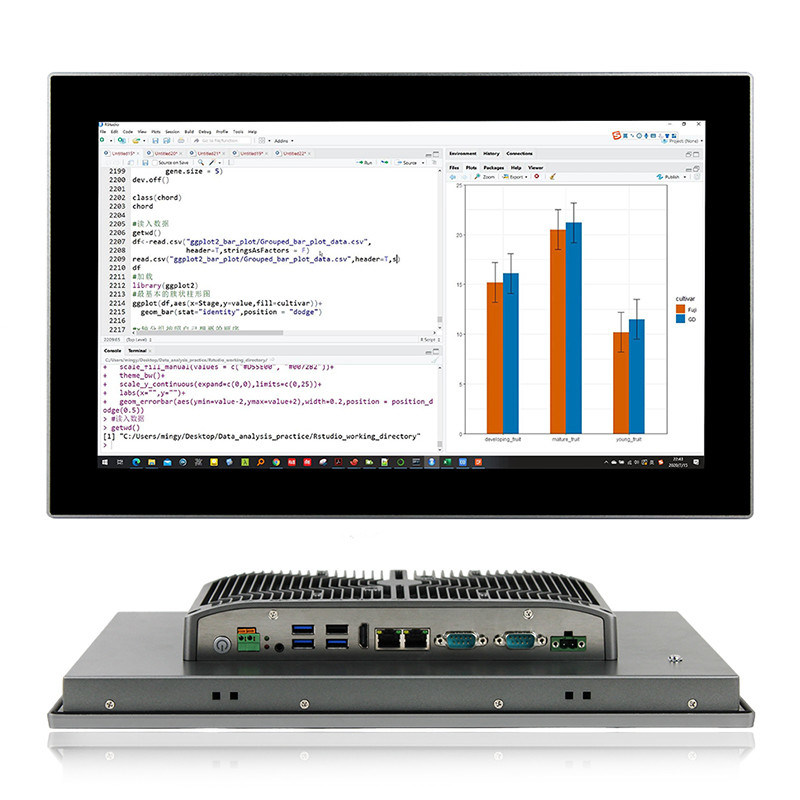

| PPC-5173WAC | |
| System | |
| CPU | Intel Core i5-8265U Quad Core 1.6GHz |
| L3 Cache | 6MB |
| Memory | DDR4L 2400MHz 4GB, Up to 64GB |
| Harddisk | 1 x M.2 120G SSD / (250G / 500G / 1TB SSD) Optional |
| Graphics | Intel HD Graphics 620 |
| Network | Intel® I211-AT GbE LAN |
| Audio | Realtek ACL662 Audio controller |
| TPM | TPM 2.0 |
| Operation System | Windows 10 / 11 / Linux, Ubuntu, Debian |
| I / O | |
| Video | 1 x H-DMI |
| LAN | 2 x LAN |
| USB | 3 x USB 3.0 / 1 x USB 2.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | WiFi / Bluetooth ( 4G / 5G Optional ) |
| Other I/O Interface | 1 x Power Switch |
| LCD Panel | |
| Panel Size | 17.3" LED |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Display Brightness | 400 cd/m2 |
| Contrast Ratio | 600:1 |
| Backlight Lifetime | 50000 Hr (min.) |
| Viewing Angle | 80 / 80 / 60 / 80 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% |
| Response Time | <5ms |
| Surface Hardness | ≥7H |
| Supply Voltage | 5.0V DC |
| Touch Life | ≧ 3000W |
| Institutional | |
| Material | High-strength Al-alloy |
| Color | Gray |
| VESA Mounting | VESA: 100 x 100 mm |
| Waterproof Rate | IP65 / IP66 |
| Product Dimension | 441 x 274 x 62 mm |
| Cut-out Size | 427 x 260 mm |
| Packing Size | 500 x 180 x 450 mm |
| Gross Weight | 8 KG |
| Power and Environment | |
| Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC IN 9V~36V |
| Power Consumption | ≦35W |
The Advantage for QYT Industrial PC:
1. Superior Design/Performance: We offer options for vibration resistance, wider operating temperatures, and protection from dirt and dust.
2. Industrial grade components: Our computers are created with components that are built for higher reliability, a longer lifecycle and more uptime.
3. Configuration Options: Our solutions are highly configurable to meet your specifications whether you need a simple gateway or machine vision.
4. Extensive I/O: We offer extensive I/O options to effectively communicate with devices such as sensors, PLCs and legacy equipment.
5. Wireless Connectivity: With options for wireless connectivity such as 4G or BlueTooth built in. These computers are ready for an edge to cloud deployment.
6. Power Options: Industrial PCs have additional power input options and can be safely connected to variable input sources.
Industrial Panel PC Features:
Rated For Extreme Temperatures
Intel J1900, 8th Gen Core i3/i5/i7 Processors
Less than 2% Failure Rate
Responsive Touch Glass
Fanless Design & Rugged Construction
